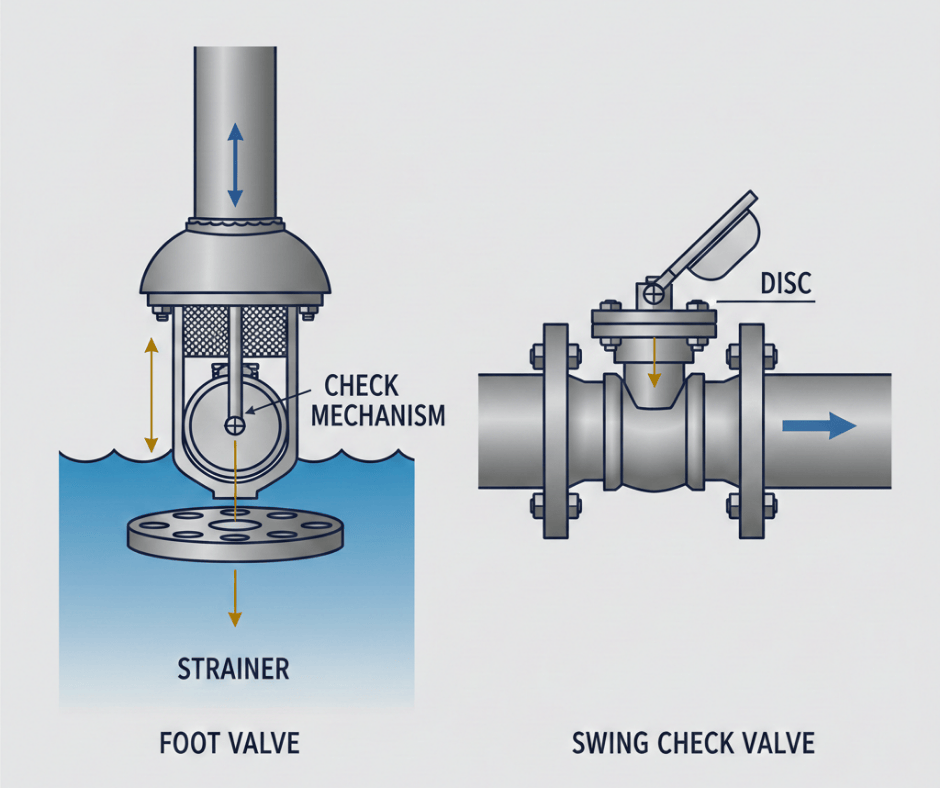

1. What is a Foot Valve? A foot valve is a one‑way valve that is fixed at the bottom end of a pump’s suction pipe. Its main purpose is to let water enter the pipe when the pump starts and to stop the water from flowing back when the pump stops. Because it is placed at the “foot” of the pipe, it is called a foot valve. This valve helps the pump remain filled with water, which means the pump does not need to be primed again and again. Foot valves are commonly used in wells, borewells, and irrigation systems. They usually come with a strainer or filter that prevents dirt and debris from entering the pump. By keeping the water from flowing backward, the foot valve protects the pump, saves energy, and ensures smooth operation. 2. What is a Check Valve? A check valve is also a one‑way valve, but it can be installed anywhere in a pipeline, not just at the bottom. Its job is to allow fluid to move in the correct direction and automatically close if the fluid tries to flow backward. This prevents reverse flow, which can damage pumps, meters, and other equipment. Check valves are used in water supply lines, industrial systems, oil and gas pipelines, chemical plants, and many other applications. They help maintain pressure, avoid contamination, and protect machinery from sudden pressure changes. A check valve works like a gate that opens only when the flow is moving forward and shuts tightly if the flow tries to reverse. 3. Difference Between Foot Valve and Check Valve A foot valve is a special type of check valve designed specifically for the suction side of a pump, and it is always installed at the bottom of the suction pipe. It usually includes a strainer to block dirt. A check valve, on the other hand, can be placed anywhere in the pipeline and does not come with a strainer. While both valves prevent backflow, a foot valve mainly helps keep the pump primed, whereas a check valve is used to protect the entire system from reverse flow. Foot valves must be installed vertically, while check valves can be installed either horizontally or vertically depending on the design. 4. Summary A foot valve is a one‑way valve used at the bottom of a pump’s suction pipe to stop water from flowing back and to keep the pump ready for the next start. A check valve is a general one‑way valve used anywhere in a pipeline to prevent reverse flow and protect the system. Both valves improve efficiency and safety in fluid systems. |Best Piping Institute| |Piping Course for Mechanical| |Piping Course for Chemical|
