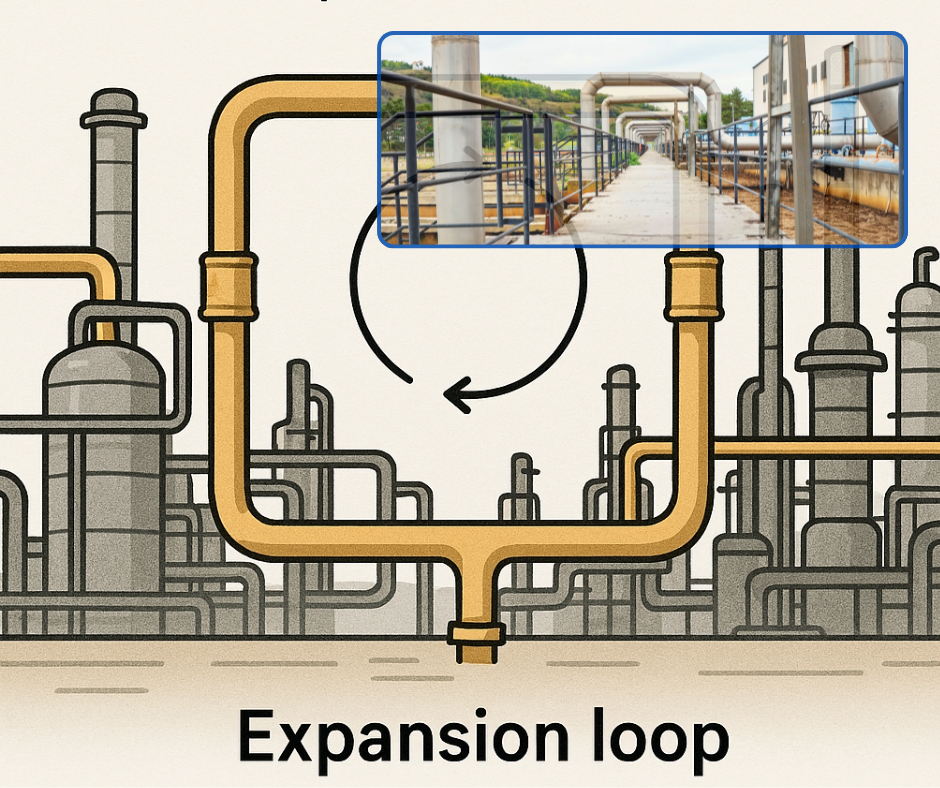

In long pipelines, especially in refineries and industrial plants, temperature changes can make the metal pipes expand and contract. When hot fluid flows through the pipe, it becomes slightly longer, and when it cools down, it becomes shorter. If the pipe has no space to move, it can bend, crack, or damage the supports and equipment connected to it. Why do we use an Expansion Loop? To avoid this damage, engineers add a U-shaped bend called an expansion loop. This loop gives the pipe flexibility to move safely when the temperature changes. Instead of pushing straight and creating stress, the pipe gently shifts inside the loop. How does it Protect the System? Expansion loops are simple but very effective. They reduce stress on the pipeline, protect welded joints, and increase the life of the entire system. Without them, repeated heating and cooling could slowly weaken the pipe and cause failures. Where are they used in Refineries? In refinery piping, expansion loops are commonly installed on long horizontal pipe runs. They are designed carefully so the pipe can expand without affecting nearby equipment or structures. This makes the whole piping system safer and more reliable. |Piping Design Course| |Pipelines Courses| |Piping Engineering Training Course|
